| PHYSICAL PROPERTIES | |
| PROPERTY | RESULT |
|

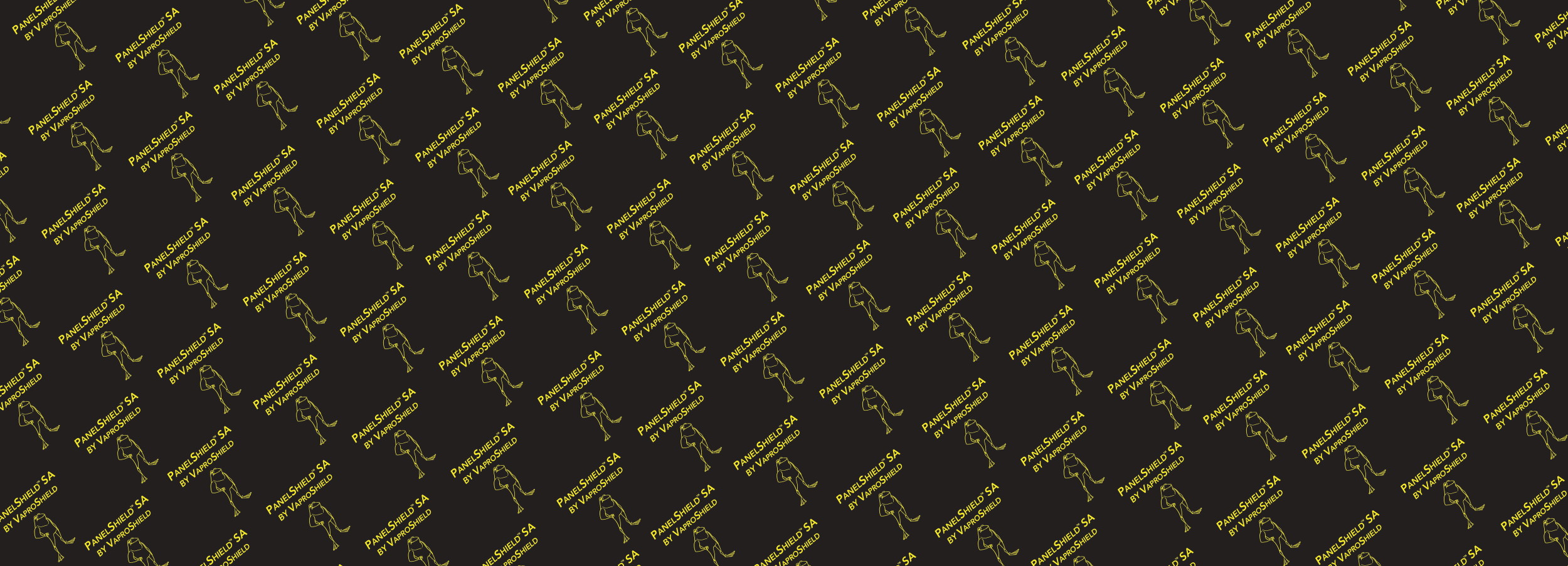

Color |
Black/Yellow |
|
Thickness |
14 mil (0.36 mm) |
|
Membrane Weight |
275.7 g/m2 (0.904 oz/ft2) |
|
Roll Weight (with release film) |
40 lbs (18 kg) |
|
Roll Dimensions |
59” x 102’ (1.5m x 31m) |
|
Roll Coverage |
500 ft2 (46.65 m2) |
|
Skid |
25 Rolls |
|
Primer |
No Primer Required |
|
VOCs |
None |
|
Field Exposure Before Permanent Cladding |
12 months |
|
Minimum Application Temperature |
20° F (-6°C) |
|
Service Temperature |
Minus 40°F (-40°C) - 250°F (121°C) |
|
Warranty |
20 year material warranty |
| TESTING DATA | ||
| PROPERTY | STANDARD | RESULT |
|
Strength |
||
|
Dry Breaking Force (Grab method) MD ≥40 XMD ≥35 |
ASTM D5034 Standard Test Method for Breaking Strength and Elongation of Textile Fabrics (Grab Test) |
MD - 560 N (126 lbf) |
|
Dry Breaking Force (Grab method) MD ≥40 XMD ≥35 |
ASTM D5034 Standard Test Method for Breaking Strength and Elongation of Textile Fabrics (Grab Test) |
MD - 529 N (119 lbf) |
|
Cold Mandrel Bend Test |
AC38 Section 3.3.4 |
MD – no cracks Pass |
|
Weathering Tests |
AC38 Section 4.1.2 UV Exposure |
Accelerated UV aging: No objectionable appearance Thermal Cycling: No objectionable appearance Elevated Temperature: No objectionable appearance Water immersion: No objectionable appearance |
|
Water Vapor Transmittance |
||
|
Water Vapor Transmission Desiccant Method Procedure A |
ASTM E96 Standard Test Methods for Water Vapor Transmission of Materials |
8.86 Perm (grain/h•ft²•inchHg) |
| Water Vapor Transmission Water Method Procedure B | ASTM E96 Standard Test Methods for Water Vapor Transmission of Materials | 24.3 Perm (grain/h•ft²•inchHg) 1390 ng/Pa•s•m² (23°C 50-100 %RH) |
| Water Vapor Transmission Using Modulated Infrared Sensor | ASTM F1249 Standard Test Method for Water Vapor Transmission Rate Through Plastic Film and Sheeting Using a Modulated Infrared Sensor | 5.9 Perm (grain/h•ft²•inchHg) 338 ng/Pa•s•m² (23°C 0-50 %RH) |
|
Adhesion Testing |
||
|
Lap Peel Strength |
ASTM D1876 Standard Test Method for Peel Resistance of Adhesives (T-Peel Test) |
2.0 lbf/in (0.35 N/mm) |
| Adhesion to backing 180° Peel Adhesion | ASTM D3330 method B | 3.2 lbf/in (0.56 N/mm) |
| 90° Peel Adhesion | AAMA 711 Section 5.3 (ASTM D3330 method F PASS ≥ 0.26 N/mm (1.5 lbs/in) | Anodized aluminum 2.7 lbf/inch (0.47 N/mm) DensGlass Gold 3.0 lbf/inch (0.53 N/mm) OSB 1.5 lbf/inch (0.26 N/mm) Plywood 2.7 lbf/inch (0.47 N/mm) Vinyl 2.3 lbf/inch (0.40 N/mm) Facing material 1.7 lbf/inch (0.30 N/mm) |
| Accelerated Aging and UV exposure 90° Peel Adhesion 24 hours | AAMA 711 Section 5.4 |
Accelerated UV aging 3.1 lbf/inch (0.54 N/mm) |
| Elevated Temperature (80 °C for 7 days) 90° Peel Adhesion 24 hours | AAMA 711 Section 5.5 |
Elevated Temp 176°F (80°C) 1.8 lbf/inch (0.32 N/mm) |
| Thermal Cycling 90° Peel Adhesion 24 hours | AAMA 711 Section 5.6 |
Thermal Cycling 2.7 lbf/inch (0.47 N/mm) |
| Adhesion after Water Immersion | AAMA 711 Section 5.8 |
Water immersion 2.2 lbf/inch (0.39 N/mm) |
| Resistance to Peeling from Itself 90° Peel Adhesion 24 hours |
AAMA 711 Section 5.9 & Annex A |
Pass level 3 |
| Pull Adhesion | ASTM 4541 | Glass-fiber faced gypsum 33 psi (0.23 MPa) CMU Block 28 psi (0.19 MPa) |
|
Air Resistance Testing |
||
|
Air Permeance |
ASTM E2178 @75 Pa Standard Test Method for Air Permeance of Building Materials |
0.0017 L/s•m² @ 75 Pa (<0.000335 cfm/ft² @ 1.57 psf) |
|
Air Barrier |
ASTM E2357 Standard Test Method for Determining Air Leakage of Air Barrier Assemblies |
<0.0086 L/s•m² @ 75 Pa (<0.0017 cfm/ft² @ 1.57 psf) |
|
Air Barrier |
CAN/ULC-S742-11-R2016 exterior side of the assembly is cooled to -20 °C while the interior |
A1 Classification: |
| Air Barrier | CAN/ULC-S741-08 air leakage cannot exceed 0.05 L/s•m² @ 75 Pa. Air leakage rate of the air barrier material after conditioning must not be more than 10% or 0.001 L/s•m² greater than its air leakage before conditioning | Value: Meets requirements Unconditoned < 0.02 L/s•m² at 75 Pa (0.00394 cfm/ft² @ 1.57 psf) Conditioned <0.01 L/s•m² at 75 Pa (0.00197 cfm/ft² @ 1.57 psf) |
|
Water Resistance Testing |
||
|
Water Resistance |
AATCC 127 Hydrostatic pressure test (55 cm water column for 5 hours), American Association of Textile Chemists and Colorists |
Control - No leakage |
| Nail Sealability | ASTM D1970 Section 7.9 Standard Specification for Self-Adhering Polymer Modified Bituminous Sheet Materials Used as Steep Roofing Underlayment for Ice Dam Protection ASTM D7349 Standard Test Method for Determining the Capability of Roofing and Waterproofing Materials to Seal around Fasteners | PASS |
|
Fire Testing |
||
|
Flame Spread Smoke Developed |
ASTM E84 Standard Test Method for Surface Burning Characteristics of Building Materials |
Flame Spread 0 Smoke Developed 0 |
| ASTM E1354 | ASTM E1354 Standard Test Method for Heat and Visible Smoke Release Rates for Materials and Products Using an Oxygen Consumption Calorimeter |
Ave. Effective Heat of Combustion: 1.4 MJ/kg |
| Surface Burning Characteristics | CAN/ULC-S102 Standard Method of Test for Surface Burning Characteristics of Building Materials and Assemblies | Flame Spread 5 Smoke Developed 10 |
